Material Summary
Advanced architectural ceramics, due to their unique crystal structure and chemical bond features, reveal efficiency advantages that metals and polymer materials can not match in severe settings. Alumina (Al Two O SIX), zirconium oxide (ZrO ₂), silicon carbide (SiC) and silicon nitride (Si five N FOUR) are the four significant mainstream design porcelains, and there are crucial distinctions in their microstructures: Al ₂ O ₃ belongs to the hexagonal crystal system and depends on strong ionic bonds; ZrO two has 3 crystal types: monoclinic (m), tetragonal (t) and cubic (c), and gets special mechanical residential or commercial properties through phase adjustment strengthening device; SiC and Si Three N ₄ are non-oxide porcelains with covalent bonds as the major element, and have more powerful chemical stability. These architectural differences directly bring about considerable distinctions in the prep work process, physical residential properties and engineering applications of the 4. This post will methodically examine the preparation-structure-performance relationship of these four porcelains from the perspective of materials scientific research, and explore their prospects for industrial application.

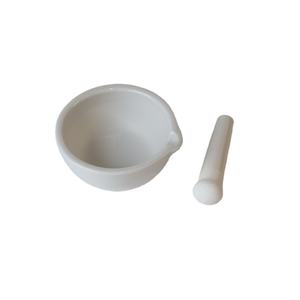

(Alumina Ceramic)
Prep work procedure and microstructure control
In regards to preparation process, the four porcelains reveal evident differences in technical routes. Alumina porcelains use a fairly conventional sintering procedure, normally using α-Al two O six powder with a pureness of greater than 99.5%, and sintering at 1600-1800 ° C after completely dry pushing. The key to its microstructure control is to prevent irregular grain growth, and 0.1-0.5 wt% MgO is usually included as a grain limit diffusion inhibitor. Zirconia ceramics require to present stabilizers such as 3mol% Y ₂ O three to preserve the metastable tetragonal stage (t-ZrO two), and utilize low-temperature sintering at 1450-1550 ° C to stay clear of too much grain growth. The core procedure challenge depends on accurately managing the t → m stage shift temperature home window (Ms factor). Because silicon carbide has a covalent bond ratio of approximately 88%, solid-state sintering calls for a high temperature of greater than 2100 ° C and relies upon sintering help such as B-C-Al to form a liquid stage. The reaction sintering method (RBSC) can accomplish densification at 1400 ° C by infiltrating Si+C preforms with silicon thaw, but 5-15% free Si will certainly stay. The preparation of silicon nitride is one of the most complex, typically making use of GPS (gas pressure sintering) or HIP (warm isostatic pushing) procedures, adding Y TWO O FOUR-Al ₂ O four collection sintering help to form an intercrystalline glass phase, and warmth therapy after sintering to crystallize the glass phase can dramatically boost high-temperature efficiency.

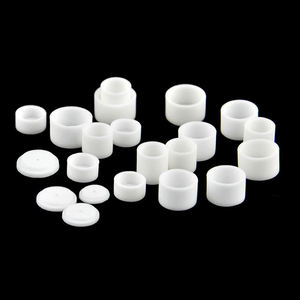

( Zirconia Ceramic)
Comparison of mechanical buildings and strengthening system
Mechanical properties are the core analysis signs of structural ceramics. The four types of products reveal entirely various conditioning mechanisms:

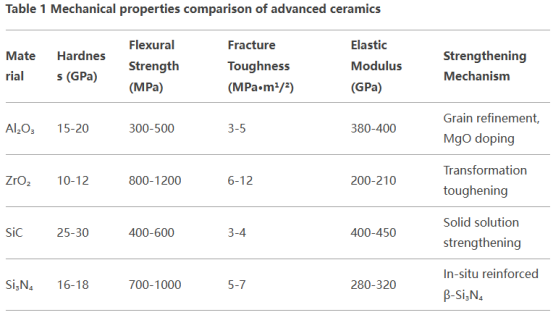

( Mechanical properties comparison of advanced ceramics)
Alumina mainly relies upon fine grain fortifying. When the grain dimension is lowered from 10μm to 1μm, the strength can be boosted by 2-3 times. The excellent strength of zirconia originates from the stress-induced phase change device. The stress area at the fracture pointer triggers the t → m stage change accompanied by a 4% quantity development, resulting in a compressive stress protecting effect. Silicon carbide can enhance the grain boundary bonding toughness via strong option of aspects such as Al-N-B, while the rod-shaped β-Si three N four grains of silicon nitride can generate a pull-out result similar to fiber toughening. Split deflection and linking contribute to the renovation of sturdiness. It is worth noting that by creating multiphase ceramics such as ZrO TWO-Si Two N Four or SiC-Al Two O SIX, a selection of toughening systems can be coordinated to make KIC surpass 15MPa · m ONE/ TWO.
Thermophysical buildings and high-temperature actions
High-temperature security is the vital advantage of architectural porcelains that differentiates them from typical products:

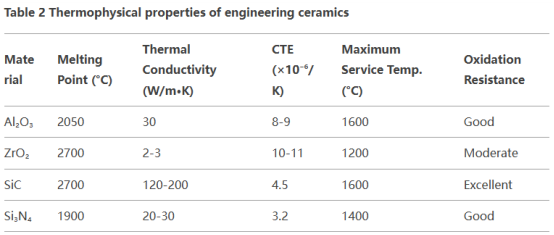

(Thermophysical properties of engineering ceramics)
Silicon carbide shows the very best thermal administration efficiency, with a thermal conductivity of as much as 170W/m · K(equivalent to aluminum alloy), which results from its easy Si-C tetrahedral structure and high phonon propagation rate. The low thermal development coefficient of silicon nitride (3.2 × 10 â»â¶/ K) makes it have excellent thermal shock resistance, and the critical ΔT value can get to 800 ° C, which is specifically ideal for repeated thermal cycling environments. Although zirconium oxide has the highest possible melting factor, the softening of the grain boundary glass phase at heat will certainly create a sharp decrease in toughness. By adopting nano-composite technology, it can be raised to 1500 ° C and still keep 500MPa stamina. Alumina will experience grain border slip above 1000 ° C, and the enhancement of nano ZrO two can form a pinning impact to inhibit high-temperature creep.
Chemical stability and corrosion actions
In a harsh setting, the 4 types of porcelains exhibit significantly different failure systems. Alumina will certainly dissolve externally in strong acid (pH <2) and strong alkali (pH > 12) solutions, and the deterioration price boosts tremendously with boosting temperature level, reaching 1mm/year in boiling focused hydrochloric acid. Zirconia has excellent tolerance to inorganic acids, but will undergo low temperature degradation (LTD) in water vapor atmospheres above 300 ° C, and the t → m phase transition will bring about the development of a microscopic fracture network. The SiO two protective layer formed on the surface of silicon carbide provides it superb oxidation resistance listed below 1200 ° C, yet soluble silicates will be created in molten antacids steel settings. The deterioration actions of silicon nitride is anisotropic, and the rust rate along the c-axis is 3-5 times that of the a-axis. NH Two and Si(OH)four will certainly be produced in high-temperature and high-pressure water vapor, bring about material cleavage. By maximizing the make-up, such as preparing O’-SiAlON porcelains, the alkali corrosion resistance can be boosted by greater than 10 times.

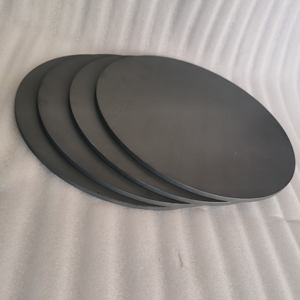

( Silicon Carbide Disc)
Normal Design Applications and Situation Research
In the aerospace area, NASA uses reaction-sintered SiC for the leading edge components of the X-43A hypersonic airplane, which can withstand 1700 ° C wind resistant home heating. GE Air travel makes use of HIP-Si six N â‚„ to manufacture generator rotor blades, which is 60% lighter than nickel-based alloys and enables higher operating temperature levels. In the clinical area, the fracture toughness of 3Y-TZP zirconia all-ceramic crowns has reached 1400MPa, and the life span can be included more than 15 years through surface area gradient nano-processing. In the semiconductor market, high-purity Al â‚‚ O five porcelains (99.99%) are used as tooth cavity materials for wafer etching equipment, and the plasma rust rate is <0.1μm/hour. The SiC-Alâ‚‚O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Alâ‚‚O₃ armor.
Technical challenges and development trends
The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm parts < 0.1 mm ), and high manufacturing expense of silicon nitride(aerospace-grade HIP-Si ₃ N ₄ reaches $ 2000/kg). The frontier growth instructions are concentrated on: 1st Bionic framework layout(such as shell layered framework to increase strength by 5 times); ② Ultra-high temperature level sintering innovation( such as trigger plasma sintering can attain densification within 10 mins); three Intelligent self-healing ceramics (including low-temperature eutectic phase can self-heal splits at 800 ° C); four Additive manufacturing innovation (photocuring 3D printing accuracy has actually reached ± 25μm).

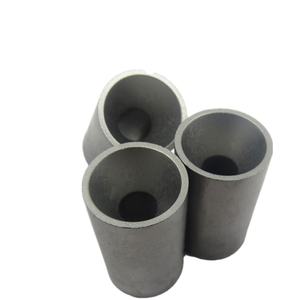

( Silicon Nitride Ceramics Tube)
Future advancement patterns
In a thorough comparison, alumina will certainly still control the traditional ceramic market with its price benefit, zirconia is irreplaceable in the biomedical field, silicon carbide is the favored product for severe environments, and silicon nitride has excellent possible in the field of high-end tools. In the following 5-10 years, via the integration of multi-scale structural regulation and smart production innovation, the efficiency limits of engineering ceramics are expected to attain new breakthroughs: for example, the design of nano-layered SiC/C ceramics can achieve sturdiness of 15MPa · m ¹/ ², and the thermal conductivity of graphene-modified Al â‚‚ O five can be boosted to 65W/m · K. With the development of the “dual carbon” strategy, the application scale of these high-performance porcelains in new power (fuel cell diaphragms, hydrogen storage space products), environment-friendly manufacturing (wear-resistant components life boosted by 3-5 times) and various other areas is anticipated to preserve a typical annual development rate of greater than 12%.
